Titanium Scales
Titanium Scales:
Upgrade your GOAT Tools multi-tool with the strength and durability of titanium. This lightweight and corrosion-resistant material is the ideal choice for enhancing the functionality and durability of your multi-tool.

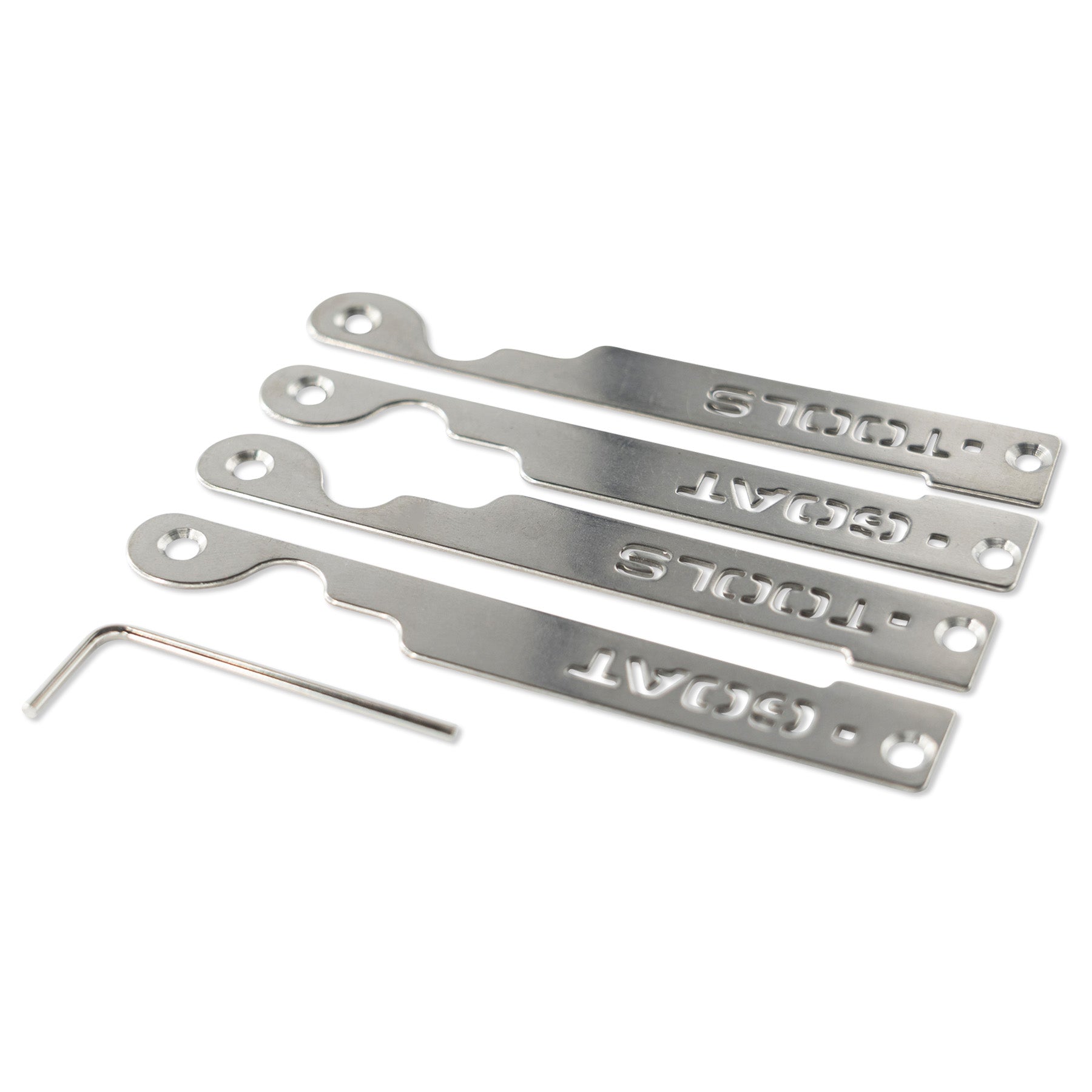

Each set of titanium scales includes the following:
- 4 scales (2 per handle)
- 8 new screws with thread lock pre-applied
- A spare 2mm allen wrench/hex key
Installation:
Installing the titanium scales is a simple process that can be done in just a few minutes. First, remove the old scales and screws from the tool. Next, attach the new scales to the tool and tighten the screws to your desired tension of the internal tools
If you are looking for a durable, lightweight, and corrosion-resistant material for your GOAT Tools multi-tool, then titanium scales are the perfect choice.
What are all the specifications?
Length: 105mm / 4.1"Width: 32.5mm / 1.3"Depth: 19.5mm (without pocket clip) 0.77"Weight: 7.7oz / 218gMaterials: The handle and a majority of the tools are made from hardened 420 stainless steel. We use 440C for the default blade, an optional S35vn blade can be added. The replaceable wire cutters are made from hardened 440A.Hardware: All the screws are M3x0.5x5mm (you can go as long as 8mm with our pivots)
Length: 105mm / 4.1"
Width: 32.5mm / 1.3"
Depth: 19.5mm (without pocket clip) 0.77"
Weight: 7.7oz / 218g
Materials: The handle and a majority of the tools are made from hardened 420 stainless steel. We use 440C for the default blade, an optional S35vn blade can be added. The replaceable wire cutters are made from hardened 440A.
Hardware: All the screws are M3x0.5x5mm (you can go as long as 8mm with our pivots)
Do you ship overseas?
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout. We run discounts and promotions all year, so stay tuned for exclusive deals.
What shipping carriers do you use?
We use all major carriers, and local courier partners.
Can I return my product?
We always aim to make sure our customers love our products, but if you do need to return an order, we’re happy to help. For used tools please refer to the warranty instead. Just email us directly and we’ll take you through the process.
How long will it take to get my order?
It depends on where you are. Orders processed here will take 5-7 business days to arrive. Overseas deliveries can take anywhere from 7-16 days. Delivery details will be provided in your confirmation email.
In just 10 seconds – replace, swap, and rearrange the tools to fit your specific needs.
Over 17 different modules already available. Create the perfect multi-tool like no other.
Fully stainless steel tools and handle construction to withstand the most demanding conditions.
Measures just 4 inches long and weighs only 7.7 ounces. Easily carry it with you wherever you go.
Frequently Asked Questions
Absolutely! We have a 100-year, lifetime, forever, beyond-the-apocolypse Warranty
We always aim to make sure our customers love our products, but if you do need to return an order, we’re happy to help. For used tools please refer to the warranty instead. Just email us directly and we’ll take you through the process.
Heat will help loosen the the thread lock.
- Heat gun aimed at the screws until they get hot
- Blow dryer
- Soldering iron against the screws
- Oven or Air fryer at 250°F for a few minutes (careful, it will be hot, let it cool below 100°F or handle with heat protective gloves.
Most likely the pivot pin was not centered and may have been binding against the handle (hard to see when the scales are installed), or one of the screws on the pivot was tightened more than the other - this can cause the pivot to become seized to one scale. I recommend loosely tightening both sides of the pivot, making sure the pin is in both sides of the handle and centered, and then alternating 1/4 turn on each side at a time to ensure equal tension.
The leaf spring in the handle that works as the locking mechanism is not providing enough tension on the tools to maintain the lock.
- Remove the tools and D-pin pivot from that handle.
- Open the pliers (this provides better grip for the next steps)
- Pull the side tabs of the handle apart (where the pivot used to be) just enough to push the leaf spring up into the handle to increase the bend and thus the tension.
- Reassemble the pivot and there will not be more tension holding the tools in the handle.
Each of the Longer tools (or any tool placed in the outer slots) requires 1mm spacing from the side of the handle. The Hot Swap levers provide this, the Saw has a 1mm washer next to it in the default configuration, and the scissors provide their own spacing with their 2-layer design. Without the spacing, the tool will not align with the locking mechanism in the handle.
